Outline

This product is composed of massage simulator, real-time HD camera system and intelligent training & assessment software system, which can study, teach, train and assess common clinical massage techniques. Operation data can be captured in real time and fully displayed in the software to improve the training effect of trainers.

Skills Gained

· Massage manipulation training skills including rolling, kneading, pressing, gliding, rubbing, shaking, etc.

Features

· Massage simulator:

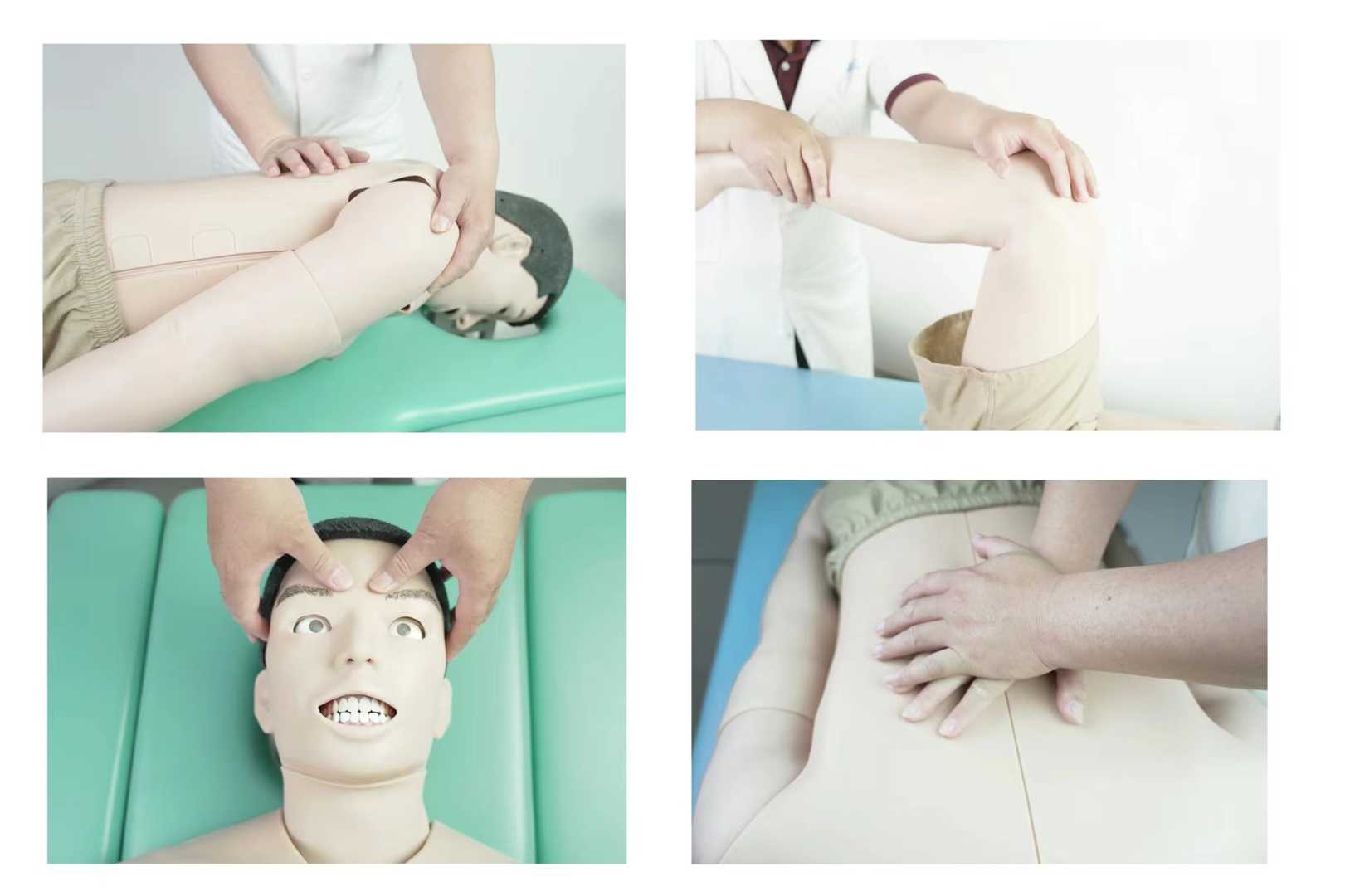

1) It’s a full-body male manikin with true-to-life hand feel, height of 1.75m and weight close to adult male.

2) Flexible neck movement. Movable bilateral shoulder, elbow, hip and knee joints support supine position, prone position, sitting position, allowing for training multi-massage manipulation.

3) Manipulation operation like rolling, kneading, pressing, gliding, rubbing, shaking can be accurately collected.

4) Built-in sensors at the head, shoulders, back, abdomen and limbs can detect and trace magnitude, direction, frequency and position of the force applied on the manikin.

5) The back and abdominal pressure detection range is 0-32kg with an accuracy of around 100g.

6) The shoulders pressure detection range is 0-30kg with an accuracy of around 100g.

7) Both wireless and wired communication available.

8) There will be a voice feedback, indicating the force of massage manipulation in time.

· Real-time HD camera system:

1) Floor standing removable camera with lockable casters.

2) Height adjustable around 1.7 m - 2.6 m with angle 360°movement.

3) IP66 waterproof, working temperature -30℃~65℃, surge protection level 4000V.

4) Complete recording manipulation details, the operation can be played back.

5) Captured videos can be automatically stored and uploaded to the server.

· Intelligent software system:

1) The system automatically searches for and connects the massage simulator, detects the connection status online, and displays the electric quantity.

2) The system allows for data analysis in real time.

3) The system has built-in a large number of theoretical learning materials on massage techniques, including text, images and videos for learners.

4) The system displays massage techniques in a variety of charts and graphs, such as three-dimensional force diagram, real-time resultant curve etc.

5) The system can collect the data of expert standard techniques. Multi-mode graphics and videos can be synchronized to record the actual operation process of experts.

6) Instructors can add and edit theoretical learning materials, set and assess the massage manipulations.

7) The system automatically generates statistics on massage techniques, easy for instructors to view learners' assessment data and analyze their results.

8) Instructors can set the weights of subjective and objective scoring.

9) The results statistics page can be exported, printed and saved.
